Ei Wave offers a variety of Tunable Filter Products to satisfy a broad range of filtering applications. Tunable Bandpass and Bandreject filters provide the best solution for pre-tuning desired signals while rejecting interfering signals. The method of tuning can be either mechanical via a tuning knob mounted on the front of the filter, or electro-mechanical via an optional remote digital interface such as GPIB, RS-232, RS-422 or BCD.

Tunable filters can be offered to cover frequencies as low as 800KHz, or as high as 18GHz. Ei Wave offers Tunable Filters from stock, which cover many popular frequencies for applications such as military communications and wireless bands. Depending on the specific application, the tuning ranges can exceed an octave.

KNOW MORE

Tunable filters

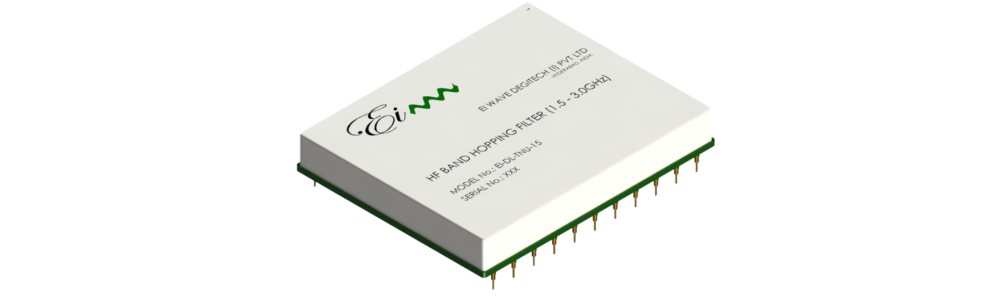

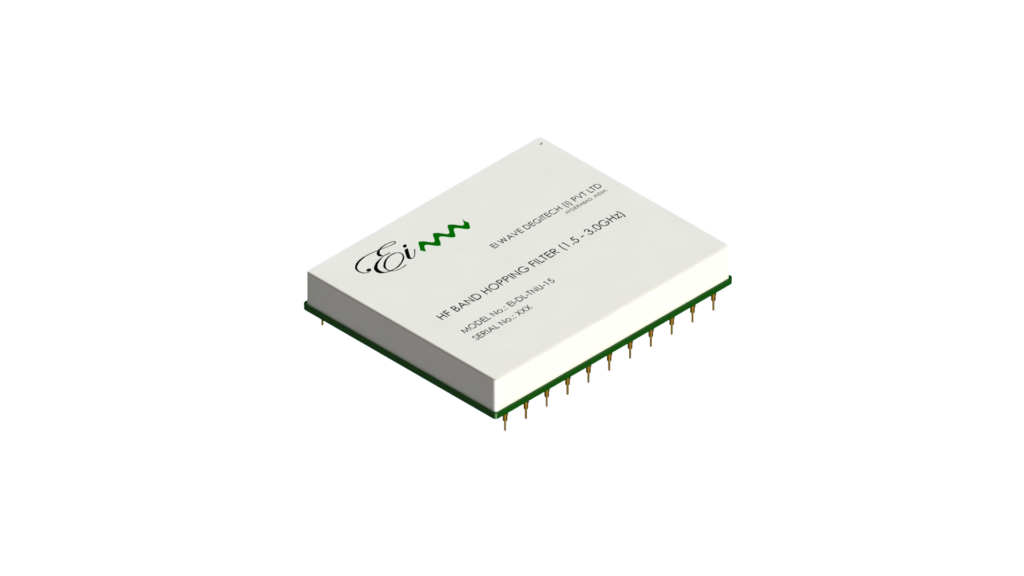

Eiwave designed and developed tunable filters in HF ,UHF,VHF upto L band . low power (varactor based ) and high power(pin diode based) are available in various miniature packages .we have developed filters with through hole and SMD packages .High degree of flexibility in design makes filters adjustable of various filter bands. Eiwave is looking forward for further smaller packages with better performance.

KNOW MORE

Fixed filters

The PiCo filters are designed for low power applications .the ultra miniature size of the filter makes it unique with this specifications. It comes with an overall dimension of 20*20*5.5( all dimensions are in mm). Module is designed with surface mount package with metallic shield. Filters are available over the frequency range of 30MHz-1000MHz .
